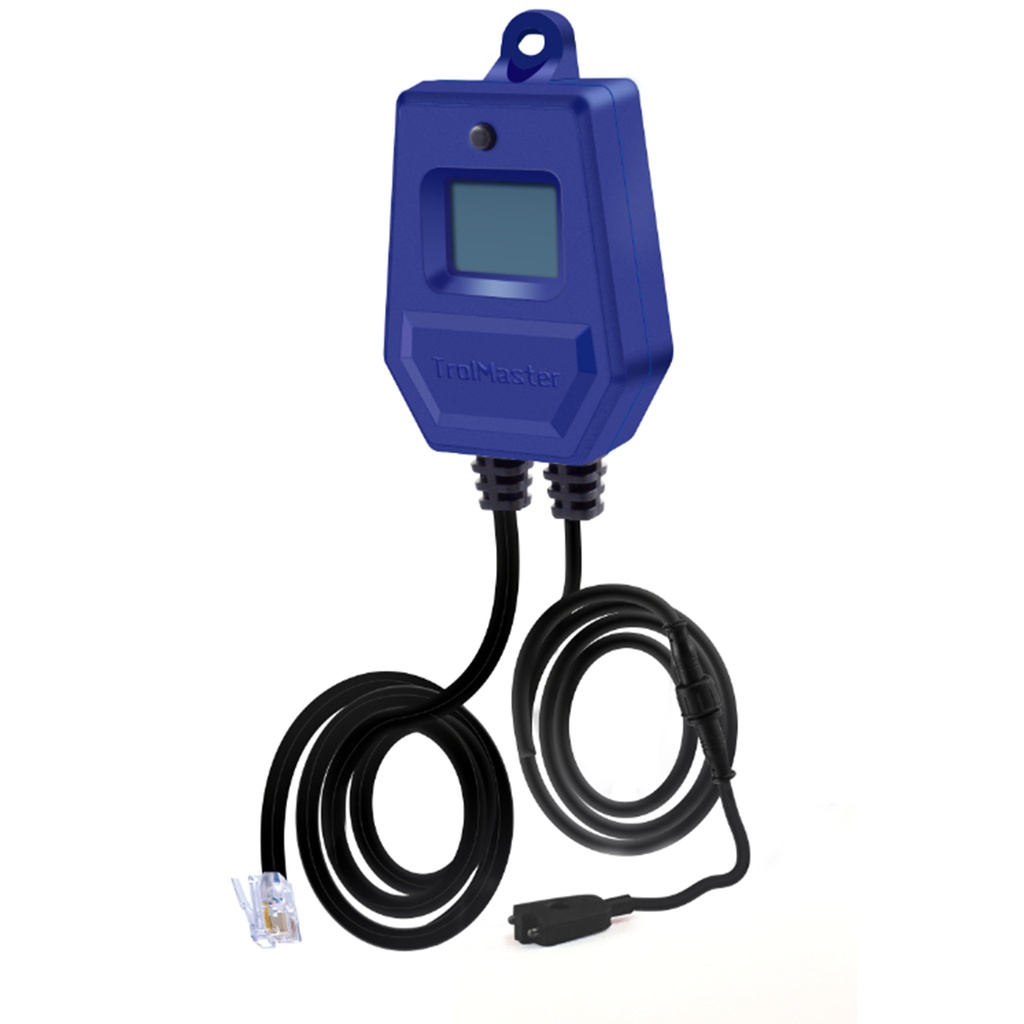

Aqua-X Water Detector （WD-1）
The
WD-1 water detector can be used in one of two ways. First, it can be
used to simply monitor the floor or a space for water… as a
leak-detector. The other way the WC-1 can be used is as a
water-verification monitor. When used in this way, the water detector is
placed where runoff will accumulate (or where water is being introduced
to the growing medium).
Each
output (solenoid or pump) on the Aqua-x can be “assigned” to a specific
WD-1. Every time the solenoid or pump assigned to the WD-1 is activated
by the Aqua-X, the WD-1 must detect water within a adjustable delay
time. If water is not detected (pump or solenoid failure) the Aqua-x
will send out a user alert notifying of the “irrigation failure”. Up to
25 WD-1 can be connected to a single Aqua-x.
Package Contents:
Water Detector
Touch Spot
RJ12 T-Splitter
16ft RJ12 Cable
Features:
LCD Display, Easy Operation
Addressing Button
Working Environments: Temperature 32°-122°F, Humidity <90%
Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
