TrolMaster Tent-X Main Controller with 3-in-1 Sensor and Cable set, Temp, Humid and Light

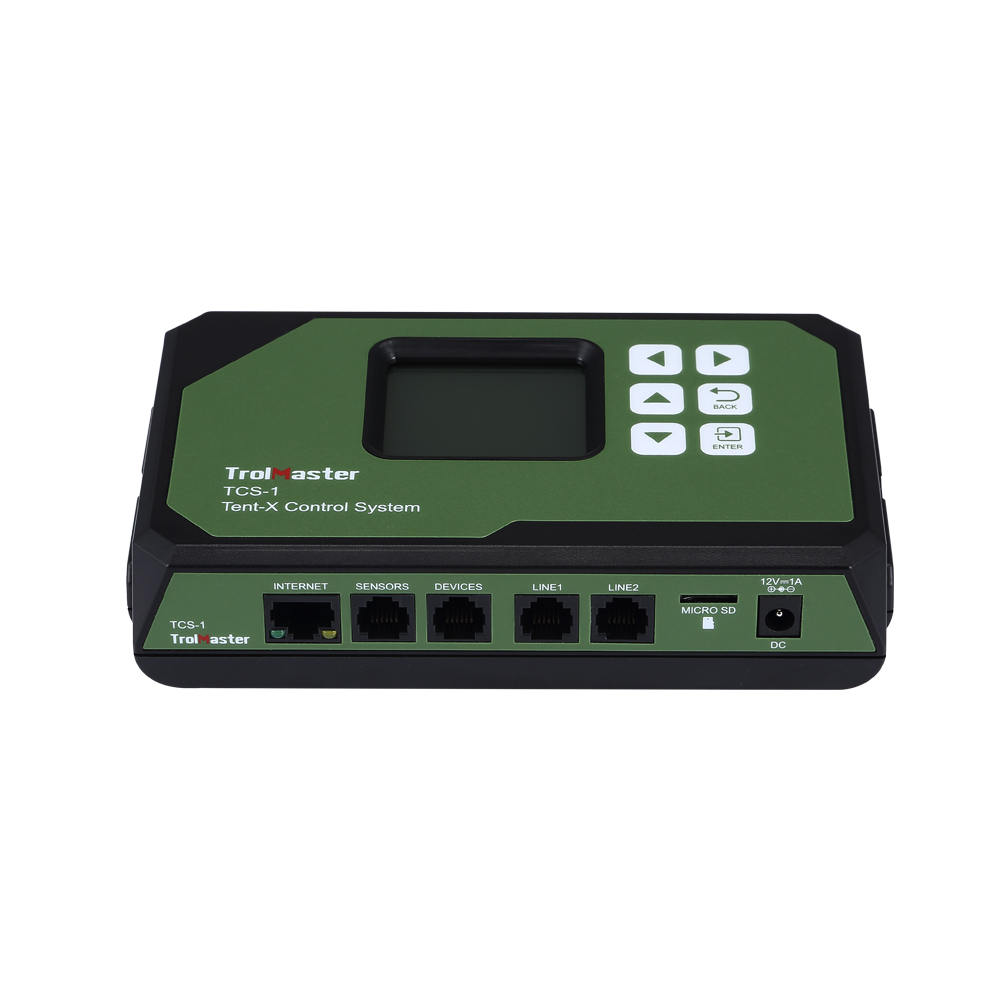

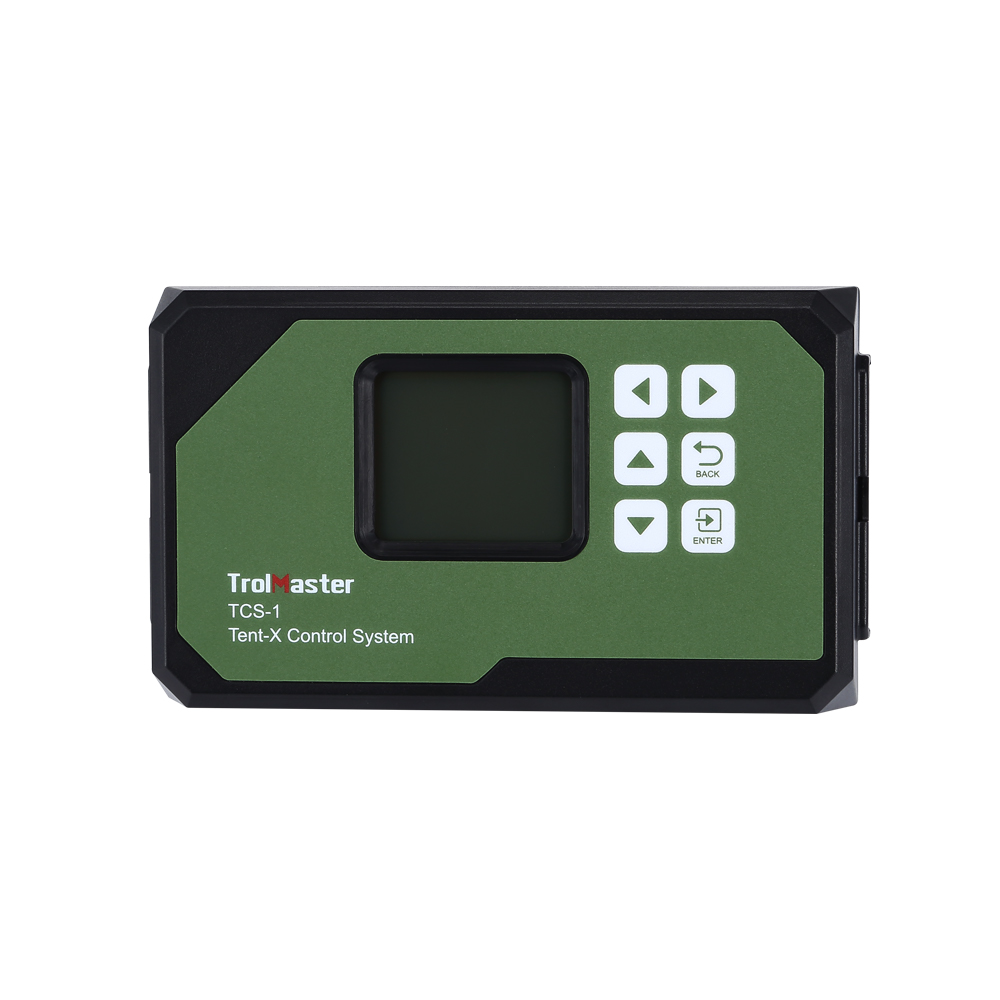

TrolMaster's Tent-X (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system, designed for single-zone grow tents. Thanks to the controller's compact hydroponic capabilities, it allows the user to effectively control their tent's environmental parameters and irrigation schedule with a single control system.

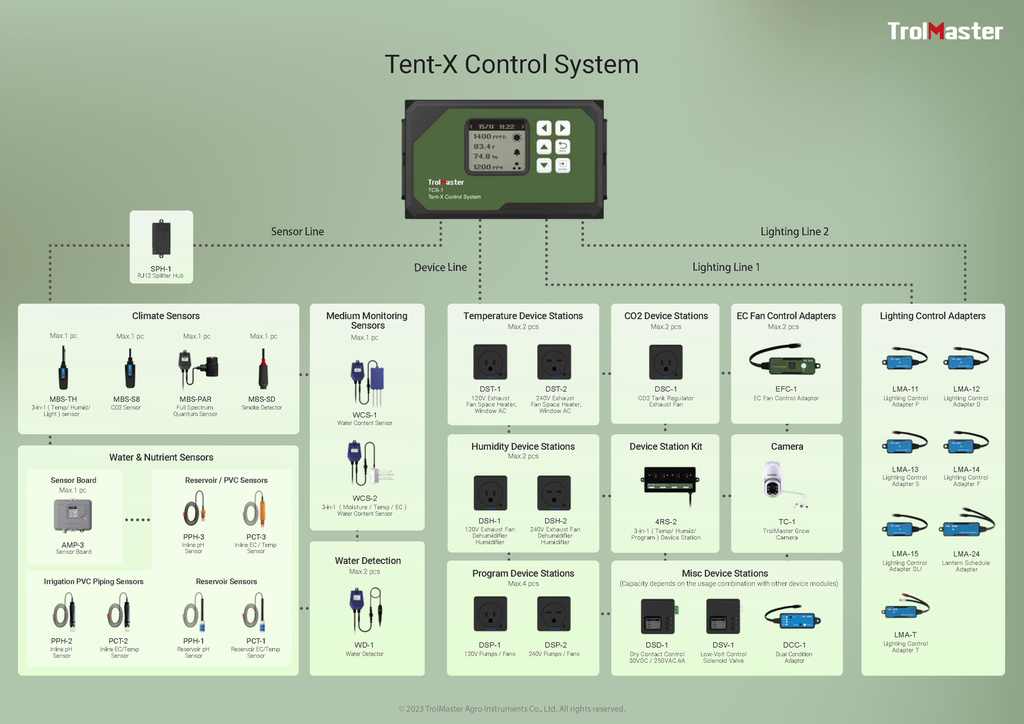

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1's SENSOR port.

Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.

The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.

Grow Tent Grow Lights
Climate
Irrigation Compact Hydroponic Control System
Modular Design & Fully Customizable
Smartphone Control
Complete Controlled Device Capacity
Data Logging

Specifications
Input Voltage    100-240VAC, 50/60Hz
Max Output Voltage    100~240VAC,50/60Hz
Max Input Current    15A
Max Output Current    15A
Max Number of Lighting Fixtures    256*2
Max Distance Connection    1000 meters
Working Temperature    32-104°F (0-40°C)
Working Humidty    ≤90%
Package Weight    3.31 lbs
Package Length    10.83”
Package Width    6.89”
Package Height    3.94
Certifications    ETL/FCC

Product Capacity
MBS-TH (Temp / Humid / Light)    max 1pc per set
MBS-S8 (CO2)    max 1pc per set
MBS-PAR (PPFD    max 1pc per set
MBS-SD (Smoke Detector)    max 1pc per set
AMP-3 (pH / EC / Temp)    max 1pc per set
WCS-1/2 (WC / EC / Temp)    max 1pc per set
WD-1 (Water Detector)    max 2pc per set
Temperature Device Stations    max 2pc per set
Humidity Device Stations    max 2pc per set
CO2 Device Stations    max 2pc per set
Timer Device Stations    max 4pc per set
EC Fan Control Adapter    max 2pc per set
