Lighting control at your fingertips! The
Master controller EL1 and EL2 Gen 2 are our entry-level systems for
centrally controlling large rooms with e-series fixtures. The second
generation of Master controllers features improved and expanded
functionality that raises the bar including non-volatile memory, event
logging, independent sunrise and sunset settings and independent light
cycles on the EL2. The EL1 has one lighting control channel and the EL2
has two lighting control channels. The EL1 can control 500 max repeater
bus fixtures and 40 max single bus fixtures without a booster. The EL2
can control 1000 max repeater bus fixtures and 80 max single bus
fixtures without a booster.

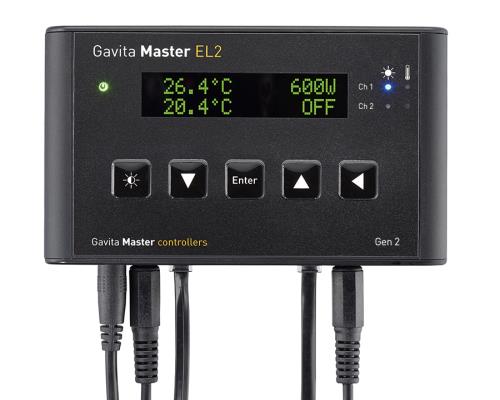

The Gavita EL2 Master Controller can switch, dim or boost control 80 ballasts from a central point or split the 80 ballasts between two rooms in alternating 12/12 cycles.
Using a Gavita Master controller to control your e-series fixtures offers you maximum control, ease of use, plug and play installation and safety. Just connect the controller cables to the fixtures with the included T-splitter (see diagram), set the dials on the fixtures to EXT (External control), plug the controller and the fixtures directly into mains and you are set to go.
The controller can switch all the interconnected fixtures on and off with its internal timer, adjust them to your required output level (in percentage or exact output power) and even simulate sunrise and sunset to gradually adjust the climate in your grow room when your lights go on or off. This electronic controller replaces expensive lighting timers and contactors while preventing ballast current in-rush when switching on your lights.
Two very important features are the auto-dim function and emergency shut-down. When the temperature in your grow room rises beyond the control level of your climate control your crop can be damaged beyond recovery. The temperature probe senses this and will automatically dim the lights to not overshoot your safe temperature, and maintain it. The display and warning LED indicate when this happens, and also indicate if this has happened while you were away so you can correct the problem. If for any reason your climate control completely fails and the temperature rises to unacceptable levels the system will perform an emergency shutdown of all connected equipment. The alarm contact of the controller can be connected to your alarm system for instant notification. You can connect all your e-series fixtures to one controller.
You can connect all your e-series fixtures to one controller, even divided in 2 separate rooms with their own temperature sensor for auto-dim at high temperature and emergency shutdown at extreme temperature. For auxiliary equipment you can connect up to two accessory Gavita ECM contactor modules, one to switch equipment when lights are on (for example a humidifier, CO2 equipment or air conditioning) and one for during lights off (for example a room heater).
Features & Benefits
No need for a switchboard
No high inrushes (ballast is always stand-by)
Easy and safe installation (low voltage device)
Protected against shortcuts
Double temperature safety feature (auto-dim/auto-shutdown)
For 80 ballasts, or 2x40 in two 12/12 rooms
For DigiStar and Pro-lines e-series, incl. LEP
Sunrise/sunset built in (0-30 mins)
Show output in % or Watts
Celsius or Fahrenheit and 24 hr/AM/PM
Calibrate temperature sensors
CE certified
Specifications:
24 hour timer (on/off): Yes
Set output level: 50-115%
Select ballast type: 400/600/750/1000W
Show output as W or %: Yes
Auto-dim at set temp: Yes
Auto shutdown at set temp: Yes
Sunrise / sunset period: Yes
Outputs: 2 (main/aux)
Number of ballasts per output: 40
Total number of ballasts: 80 (either in one room or 2x40 in 12/12)
Temperature sensors: 2 (for two rooms 12/12)
Alarm contacts NO/NC: Yes
External Contactor Modules (ECM): 2 optional
Warranty: 3 years
Easy installation
Installing the Master Controller is a breeze: its a matter of plugging in, setting the dials of the ballasts to EXT (External control) and looping the low voltage control cord from the controller to your ballasts - all plug and play. Easy, safe and flexible.
Clear Interface
The five language interface is intuitive to use with just 5 buttons. In plain text you see all settings, warnings and statuses. For an easy overview we have added LEDs for each output channel, which indicate whether the lights are on, dimming or shut down due to a dangerous high temperature. The indication LEDs are supported by a full text warning on the high quality green OLED display.
Replaces Timers and Contactors
You can plug your ballasts directly into mains outlets. You do not need any timers or contactor boxes any more: the ballasts are in stand-by mode and wake up when they get the signal from the controller. This means that you don't have any inrush any more when you switch on your ballasts. Just set the on/off time on the controller and you are good to go.
Dimming and Boosting
Once you have connected your ballasts to the controller and set the on/off time you can set the output power centrally by the push of a few buttons. You can choose to have the output power displayed as a percentage or in actual output wattage of your ballasts. We even offer you a sunrise/sunset time setting in which the lamps ramp up or down at the start and end of the cycle.
The Gavita EL2 Master Controller can switch, dim or boost control 80 ballasts from a central point or split the 80 ballasts between two rooms in alternating 12/12 cycles.
Using a Gavita Master controller to control your e-series fixtures offers you maximum control, ease of use, plug and play installation and safety. Just connect the controller cables to the fixtures with the included T-splitter (see diagram), set the dials on the fixtures to EXT (External control), plug the controller and the fixtures directly into mains and you are set to go.
The controller can switch all the interconnected fixtures on and off with its internal timer, adjust them to your required output level (in percentage or exact output power) and even simulate sunrise and sunset to gradually adjust the climate in your grow room when your lights go on or off. This electronic controller replaces expensive lighting timers and contactors while preventing ballast current in-rush when switching on your lights.
Two very important features are the auto-dim function and emergency shut-down. When the temperature in your grow room rises beyond the control level of your climate control your crop can be damaged beyond recovery. The temperature probe senses this and will automatically dim the lights to not overshoot your safe temperature, and maintain it. The display and warning LED indicate when this happens, and also indicate if this has happened while you were away so you can correct the problem. If for any reason your climate control completely fails and the temperature rises to unacceptable levels the system will perform an emergency shutdown of all connected equipment. The alarm contact of the controller can be connected to your alarm system for instant notification. You can connect all your e-series fixtures to one controller.
You can connect all your e-series fixtures to one controller, even divided in 2 separate rooms with their own temperature sensor for auto-dim at high temperature and emergency shutdown at extreme temperature. For auxiliary equipment you can connect up to two accessory Gavita ECM contactor modules, one to switch equipment when lights are on (for example a humidifier, CO2 equipment or air conditioning) and one for during lights off (for example a room heater).
