The Water Content Sensor (WCS-1) is
specifically designed to measure the water content data (percentage) of
the grow media in the Aqua-X Control System.

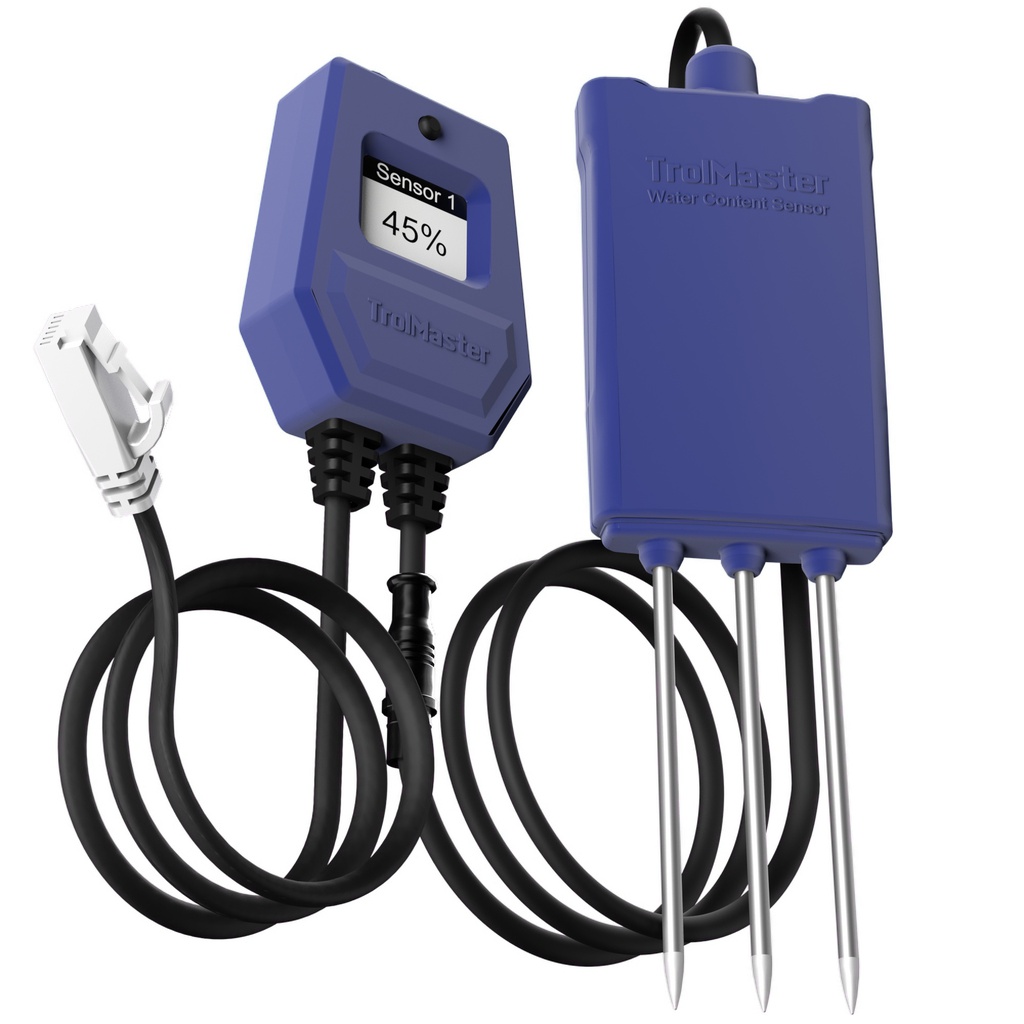

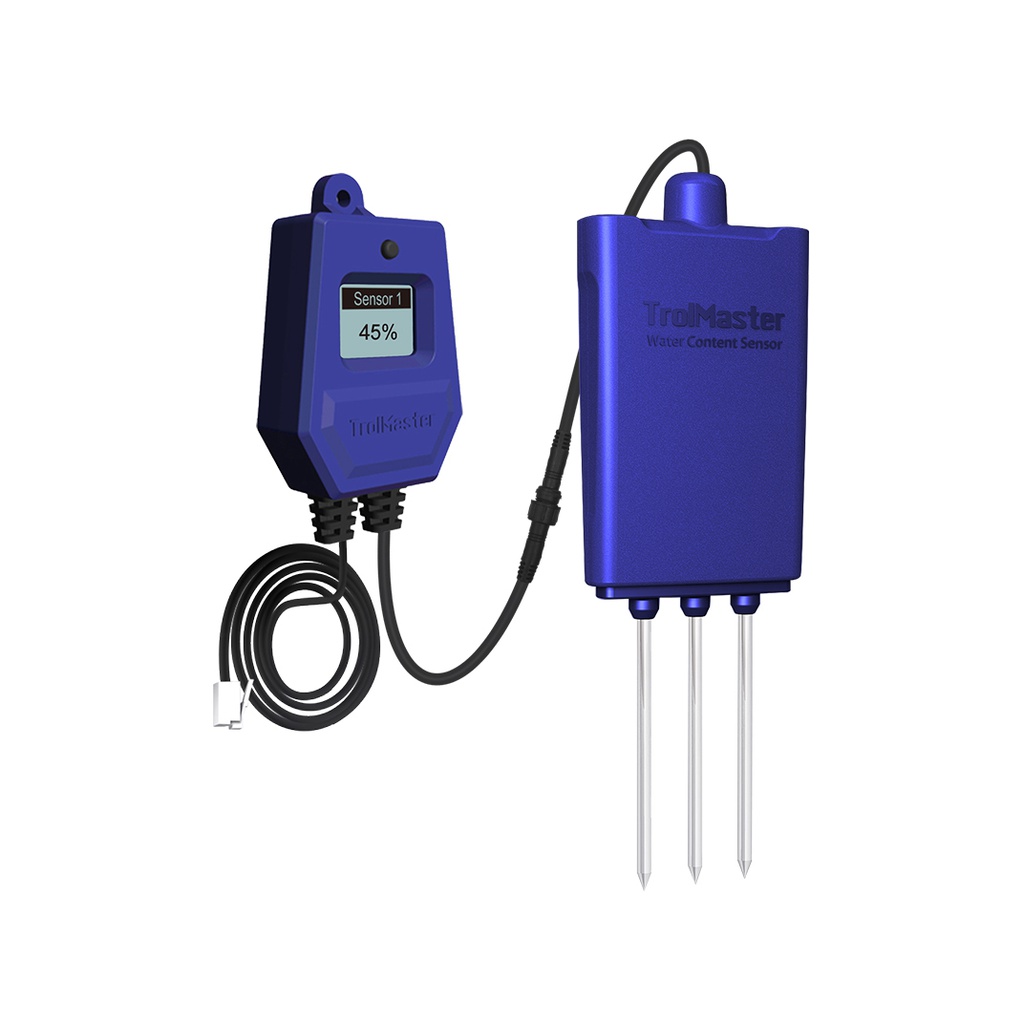

Each
set of WCS-1 includes a three-prong sensor and a transfer module
(Display Screen & Button). When measuring, the three prong sensor of
a Water Content Sensor is inserted into the grow media such as soil or

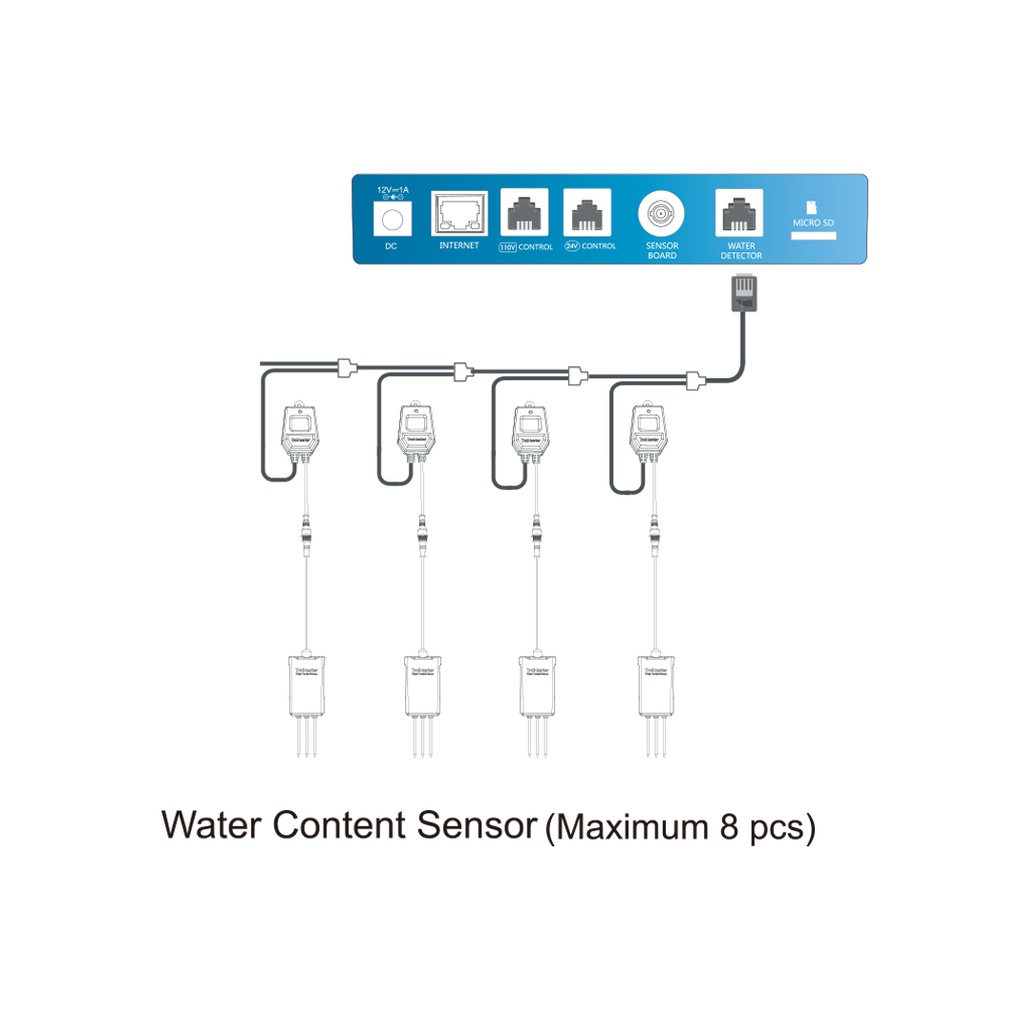

rock wool to be measured. If there are multiple Water Content Sensors
(up to 8pcs) to be connected to the NFS-1 Controller, the NFS-1 screen
will display the average value.
After
downloading the app, you could read the water content data (percentage)
and historical data (graph) on your Smartphone and receive message if
the current value of the grow media exceeds your highest and lowest
alarm setting range.
Whats Included:
1 x Water Content Sensor
1x RJ12 T-Splitter
1 x 16ft RJ12 Cable
Input Voltage: 12 VDC
Max Input Current: 0.1A
Working Environments: Temperature 32°-122°F, Humidity <90%
Measuring Range: 0~100%
Packaging Dimensions: 10.75(L) x 6.5(W) x 2.45(H)
