TrolMaster’s Hydro-x system can control
most of the supplemental lighting fixtures sold today. Most light
manufacturers provide the ability to control their lighting systems
using what known as a low-volt control. That low-volt control can take
many forms and communication protocols. TrolMaster makes several types
of lighting adapters (LMA units) that allow the Hydro-x to control
lights using their low-volt control option.

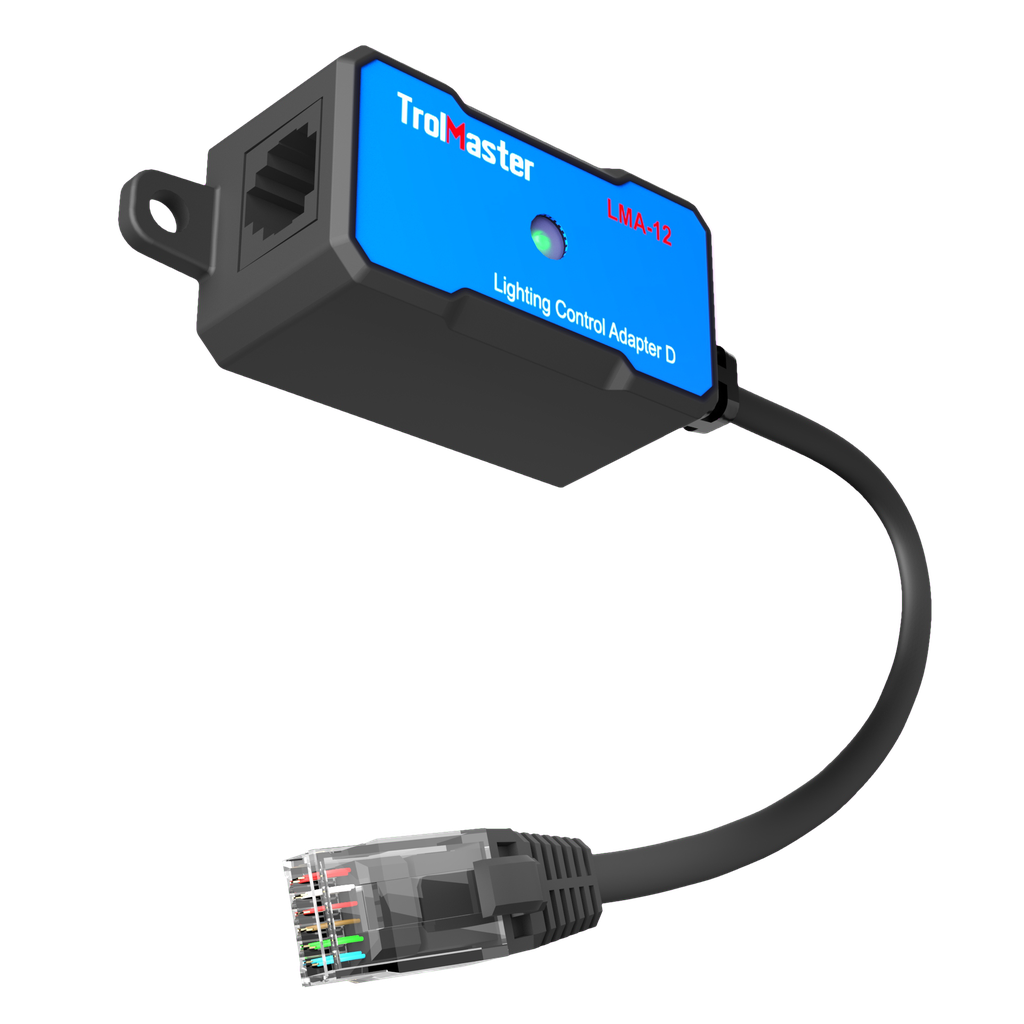

This Lighting Control Adapter D (LMA-12) is specially designed for controlling D ballast.
NOTE: 2 knob fixtures allowing individual control of 2 different bulbs can NOT be controlled by the Hydro X
Features
LED Indicator
Convert Digital Signal to Analog Signal
0.6 ft RJ12 Cable
RJ12 Cable Socket
Plug and Play
For controlling Dimlux brand products
Specifications
Output Voltage: 0~11.5V
Maximum Current: 0.2A
Working Environments: Temperature 32-122 F, Humidity = 90%
Package Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
G.W. per weight: 0.05kgs
