The TrolMaster Carbon-X system provides
critical monitoring of CO2 levels for up to 13 separate zones / rooms.
The system can have both high level (up to 30,000ppm) alerts, as well as
low level (5,000ppm) alerts. Both high and low level limits are
user-adjustable to meet local regulations for supplemental CO2 use
indoors.

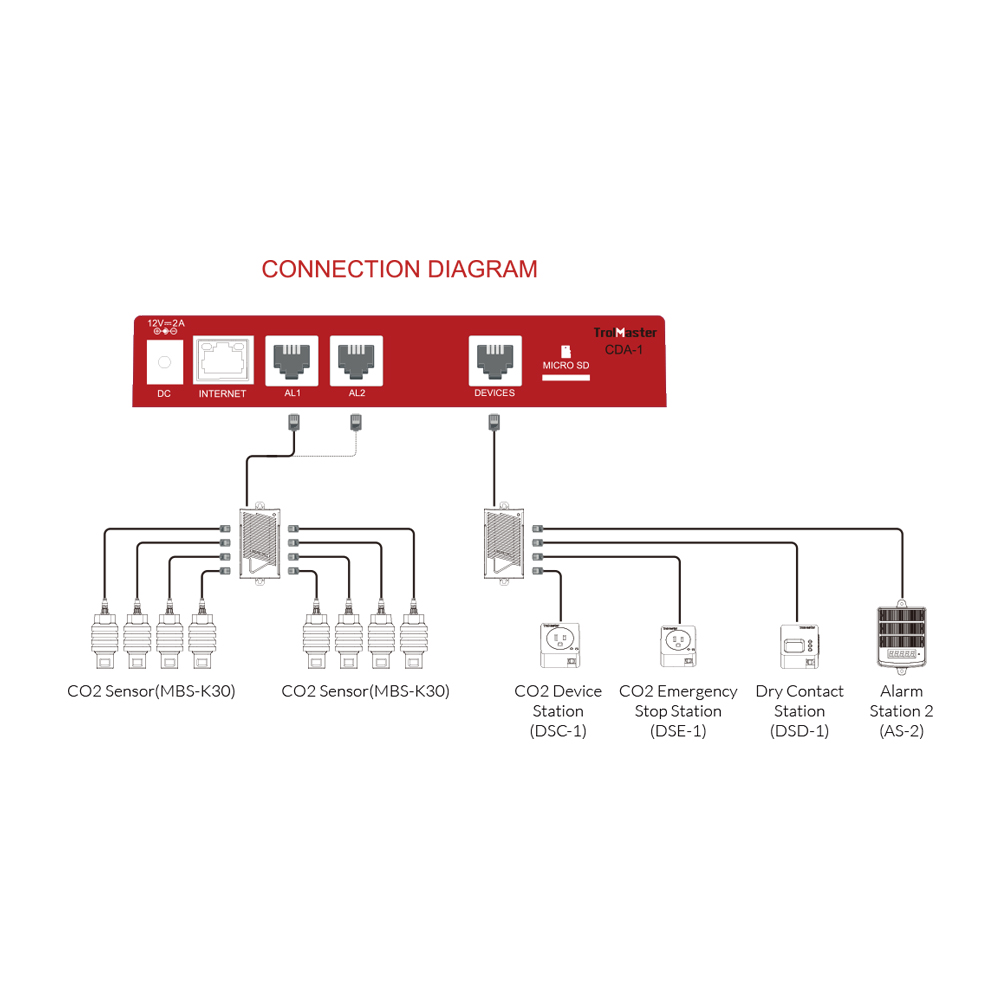

The Carbon-X system can also control various devices such as ventilation fans, dampers, main CO2 valves as well as to send a signal to the fire department by interfacing to the fire / alarm panel in the facility. Automatic shut-off of CO2 is accomplished by wiring the facility’s main CO2 solenoid in series with one of the system control modules. The settings for each of the devices connected to the system are user-selectable for easy customization.
Each room monitored by the Carbon-X will also require an audio-visual alarm to alert the personnel to the level of CO2 in the area, and whether or not it is safe to occupy the area.
The TrolMaster app can be used to remotely monitor the Carbon-X as well as to receive user-alert / notifications in the case of high CO2 levels are detected.

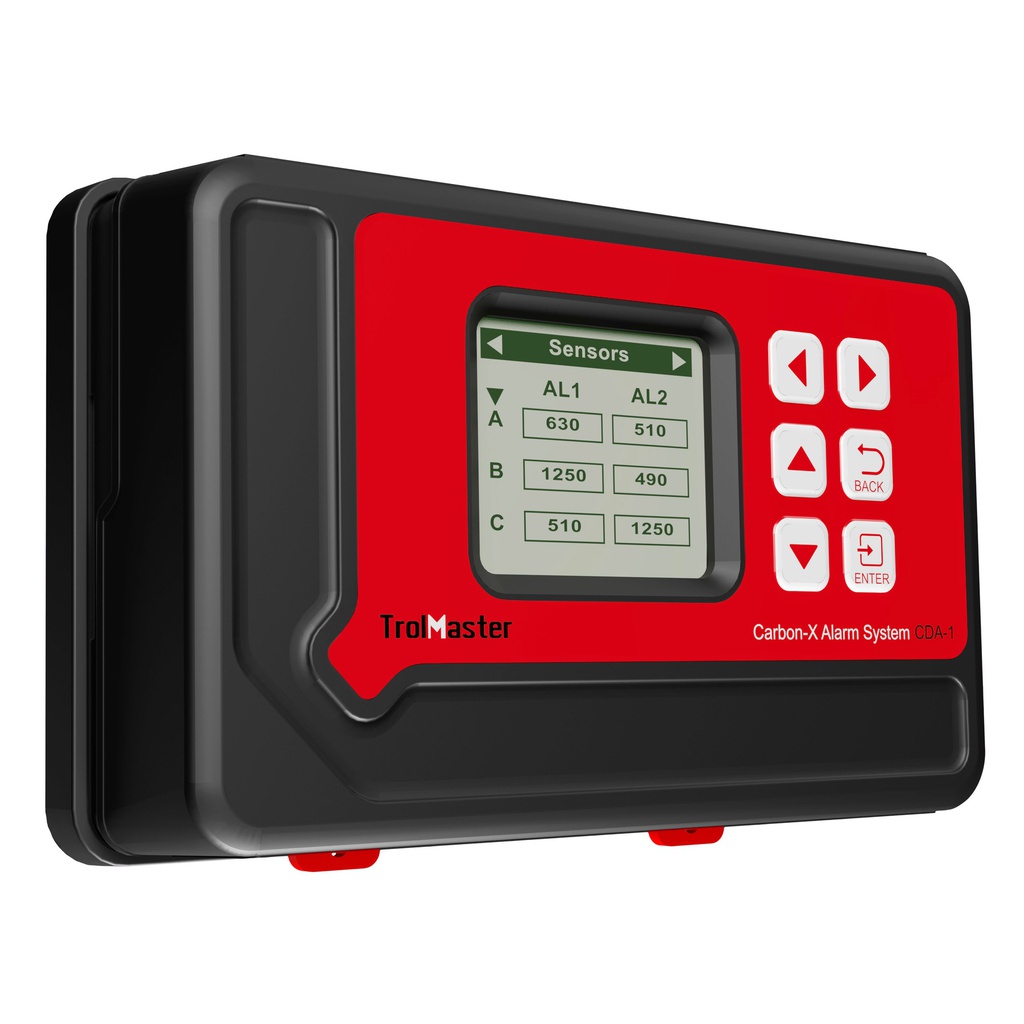

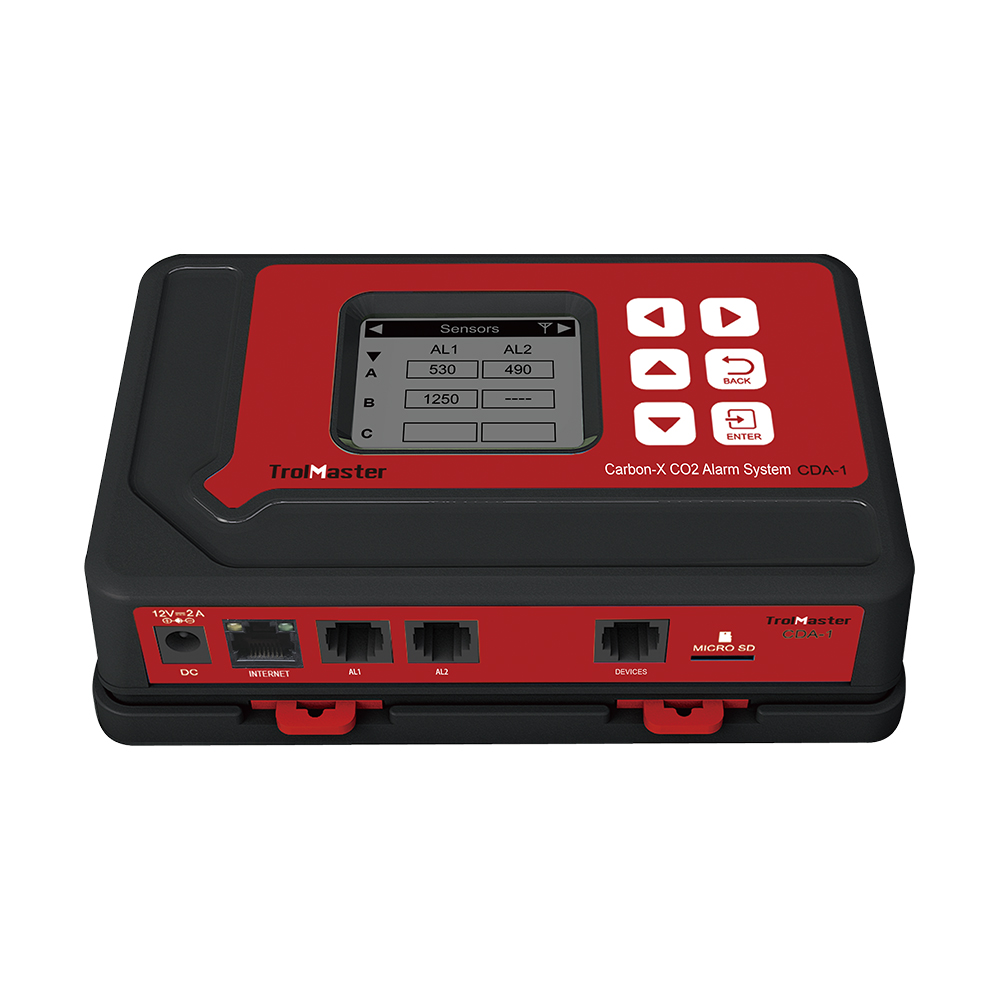

The CDA-1 is the brain of the system.
*Internet Connection Note: TrolMaster's main controllers can be connected to the internet in order to use the available APP. Most internet services available including land-based and cellular internet are compatible. However, HughesNet / Viasat Satellite internet is NOT compatible with TrolMaster controllers at this time.
*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.
Multiple Zones
Customizable
Plug and Play
App connectivity
Input Voltage: 100-240VAC, 50/60Hz
Max Sensors: 13 pcs per Alarm channel
Max controlled output: 40 pcs
Working Environment: Temperature 32-122°F, Humidity<=90%
Package Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
