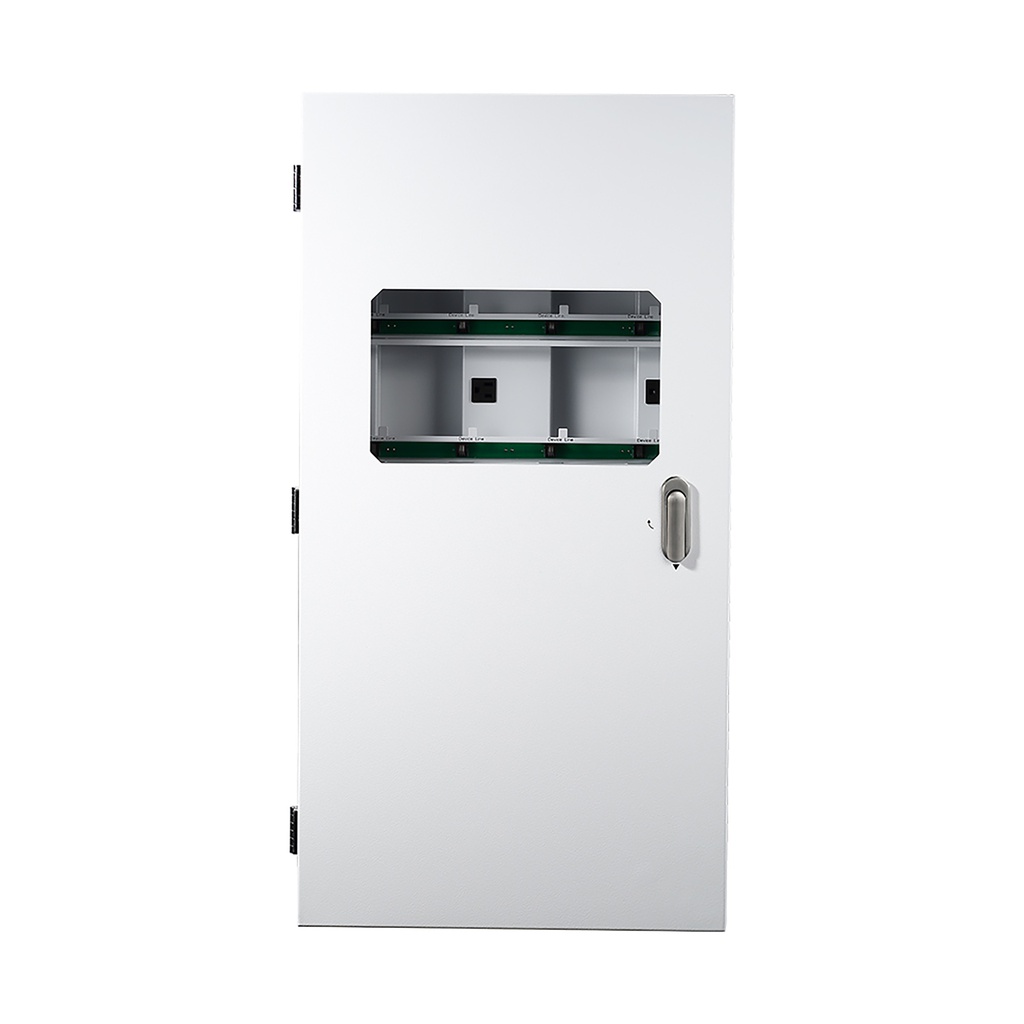

TrolMaster 35” Large Controller Cabinet for Hydro-X Pro / Aqua-X Pro
Terms and Conditions
Shipping: 2-3 Business Days
A Modular Electrical & Wire Management Enclosure System
The
SCC-1/2/3 Controller Cabinets are modular electrical and wire
management enclosure systems for the TrolMaster Control System.
Available Options:
SCC-1: Hydro-X Pro / Aqua-X Pro - 25 Inch Height
SCC-2: Hydro-X Pro / Aqua-X Pro - 35 Inch Height
SCC-3: Hydro-X Plus - 25 Inch Height
Features
Guaranteed Industrial Rated & Waterproof
ALL-IN-ONE Controller & Device Module Housing
Design Your Own Cabinet by Using Bi-directional RJ12 Cables
Detachable Design
Superior Safety System
These
cabinets are designed to hold the Hydro-X Plus as well as the Hydro-X
Pro & Aqua-X Pro and should be installed in a clean and professional
manner. A pre-cut opening allows the TrolMaster's main controller to be
easily installed and provides a professional and clean installation for
your control system. All device stations can be mounted inside the IP56
rated electrical cabinet to keep the device stations clean and dry.
Users can safely mount and nearly organize the power supplies, modules,
and RJ12 cables with ease.
Note:
In order to achieve the IP56 standard, you must use the provided
"controller rubber gasket" and perfectly fit the gasket between the
controller and cabinet door.
What Is Included?
SCC-1/3
(x1) Controller Cabinet
(x1) Rubber Gasket
(x16) Short RJ12 Cables
(x4) Power Cables for OA6 modules
(x10) OA6-24 Screw Set
Instruction Manual
SCC-2
(x1) Controller Cabinet
(x1) Rubber Gasket
(x4) Controller Mounting Screw Set
(4) Long RJ12 Cables
(x26) Short RJ12 Cables
(x8) Power Cables for OA6 modules
(x18) OA6-24 Screw Set
Instruction Manual
Specifications for the SCC TrolMaster Controller Cabinets
Power Input
Voltage: 120 Volt
Max Amps: 15 Amps
Working Environment
Ingress Protection: IP56
Temperature: 32°F - 104°F /0°C - 40°C
Cabinet Capacity
SCC-1/3
Splitter Board Group #1: 10 ports (top)
Splitter Board Group #2: 6 ports (top)
Splitter Board Group #3: 17 ports (top)
Splitter Board Group #4: 2 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
Power Outlet: 4+1+6
SCC-2
Splitter Board Group #1: 10 ports (top)
Splitter Board Group #2: 6 ports (top)
Splitter Board Group #3: 17 ports (top)
Splitter Board Group #4: 4 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
Power Outlet: 8+1+6
