TrolMaster 25“ Standard Controller Cabinet for Hydro-X Plus

A Modular Electrical & Wire Management Enclosure System

The SCC-1/2/3 Controller Cabinets are modular electrical and wire management enclosure systems for the TrolMaster Control System.

Available Options:
SCC-1: Hydro-X Pro / Aqua-X Pro - 25 Inch Height
SCC-2: Hydro-X Pro / Aqua-X Pro - 35 Inch Height
SCC-3: Hydro-X Plus - 25 Inch Height

Features
Guaranteed Industrial Rated & Waterproof
ALL-IN-ONE Controller & Device Module Housing
Design Your Own Cabinet by Using Bi-directional RJ12 Cables
Detachable Design
Superior Safety System

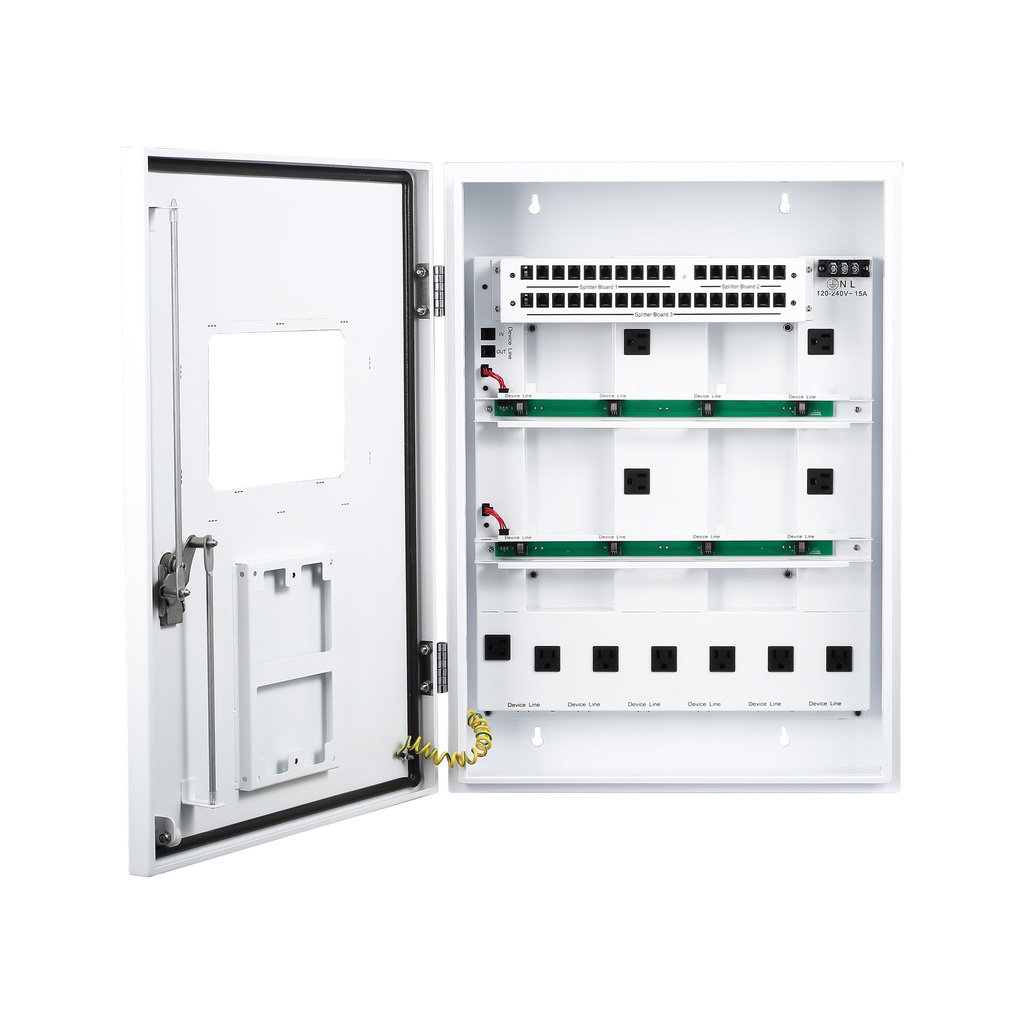

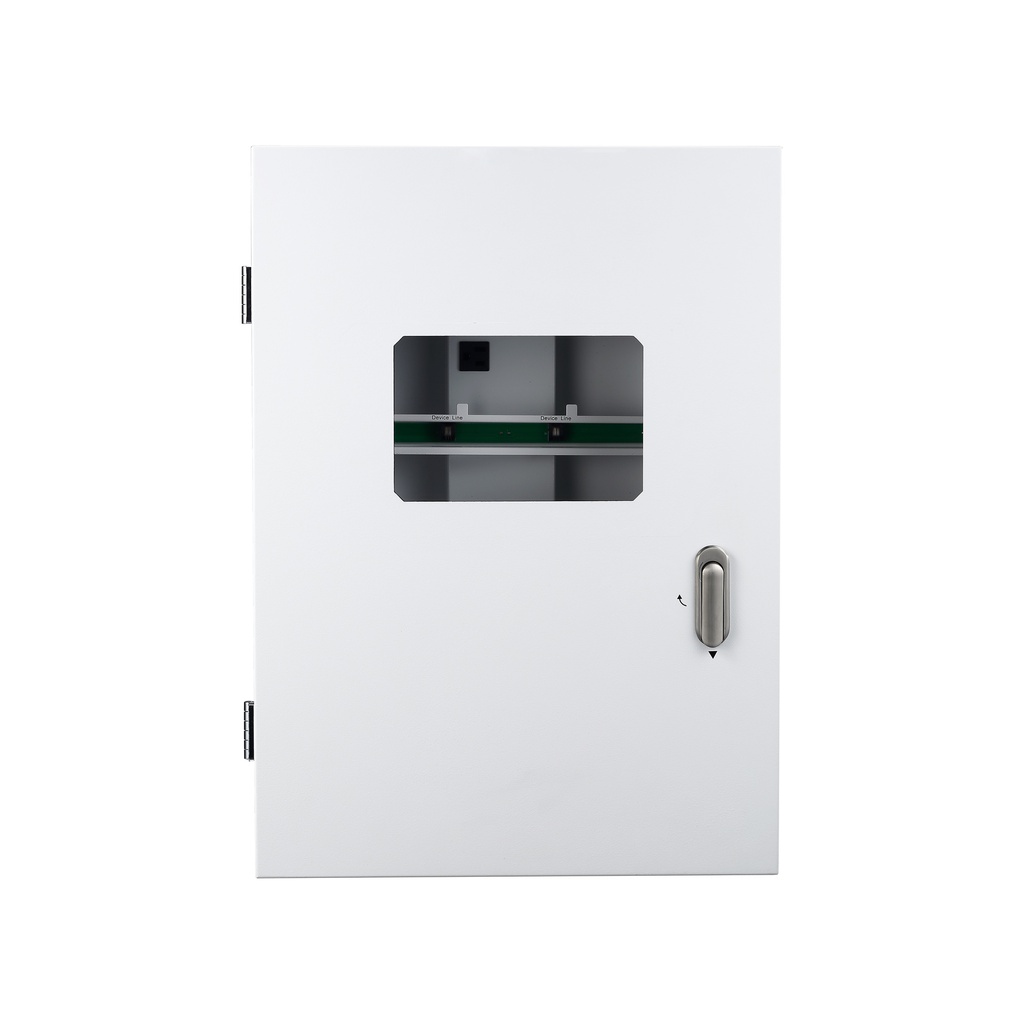

These cabinets are designed to hold the Hydro-X Plus as well as the Hydro-X Pro & Aqua-X Pro and should be installed in a clean and professional manner. A pre-cut opening allows the TrolMaster's main controller to be easily installed and provides a professional and clean installation for your control system. All device stations can be mounted inside the IP56 rated electrical cabinet to keep the device stations clean and dry. Users can safely mount and nearly organize the power supplies, modules, and RJ12 cables with ease.

Note: In order to achieve the IP56 standard, you must use the provided "controller rubber gasket" and perfectly fit the gasket between the controller and cabinet door.

What Is Included?
SCC-1/3
(x1) Controller Cabinet
(x1) Rubber Gasket
(x16) Short RJ12 Cables
(x4) Power Cables for OA6 modules
(x10) OA6-24 Screw Set

Instruction Manual
SCC-2
(x1) Controller Cabinet
(x1) Rubber Gasket
(x4) Controller Mounting Screw Set
(4) Long RJ12 Cables
(x26) Short RJ12 Cables
(x8) Power Cables for OA6 modules
(x18) OA6-24 Screw Set

Instruction Manual
Specifications for the SCC TrolMaster Controller Cabinets

Power Input
Voltage: 120 Volt
Max Amps: 15 Amps

Working Environment
Ingress Protection: IP56
Temperature: 32°F - 104°F /0°C - 40°C

Cabinet Capacity

SCC-1/3
Splitter Board Group #1: 10 ports (top)
Splitter Board Group #2: 6 ports (top)
Splitter Board Group #3: 17 ports (top)
Splitter Board Group #4: 2 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
Power Outlet: 4+1+6

SCC-2
Splitter Board Group #1: 10 ports (top)
Splitter Board Group #2: 6 ports (top)
Splitter Board Group #3: 17 ports (top)
Splitter Board Group #4: 4 x 4 ports (Detachable Splitter Bars) 6 ports (Bottom) 2 ports (Device)
Power Outlet: 8+1+6
