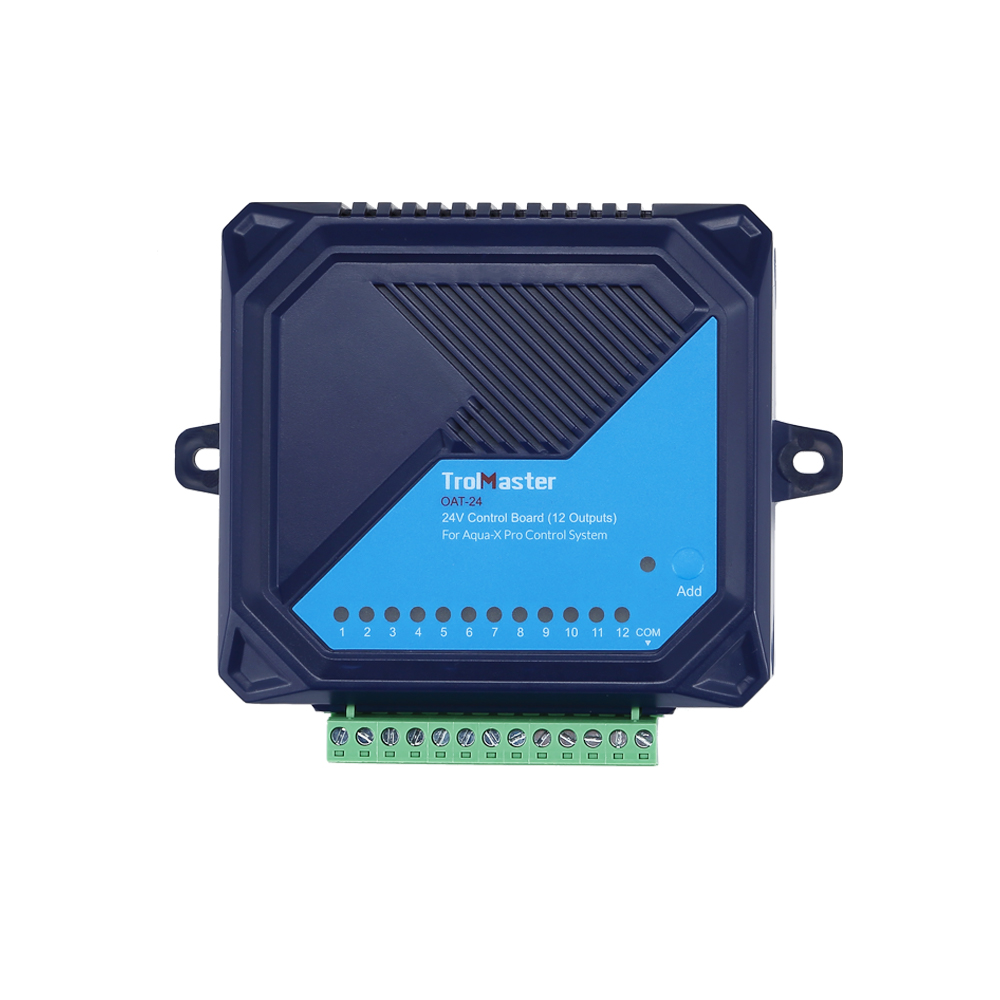

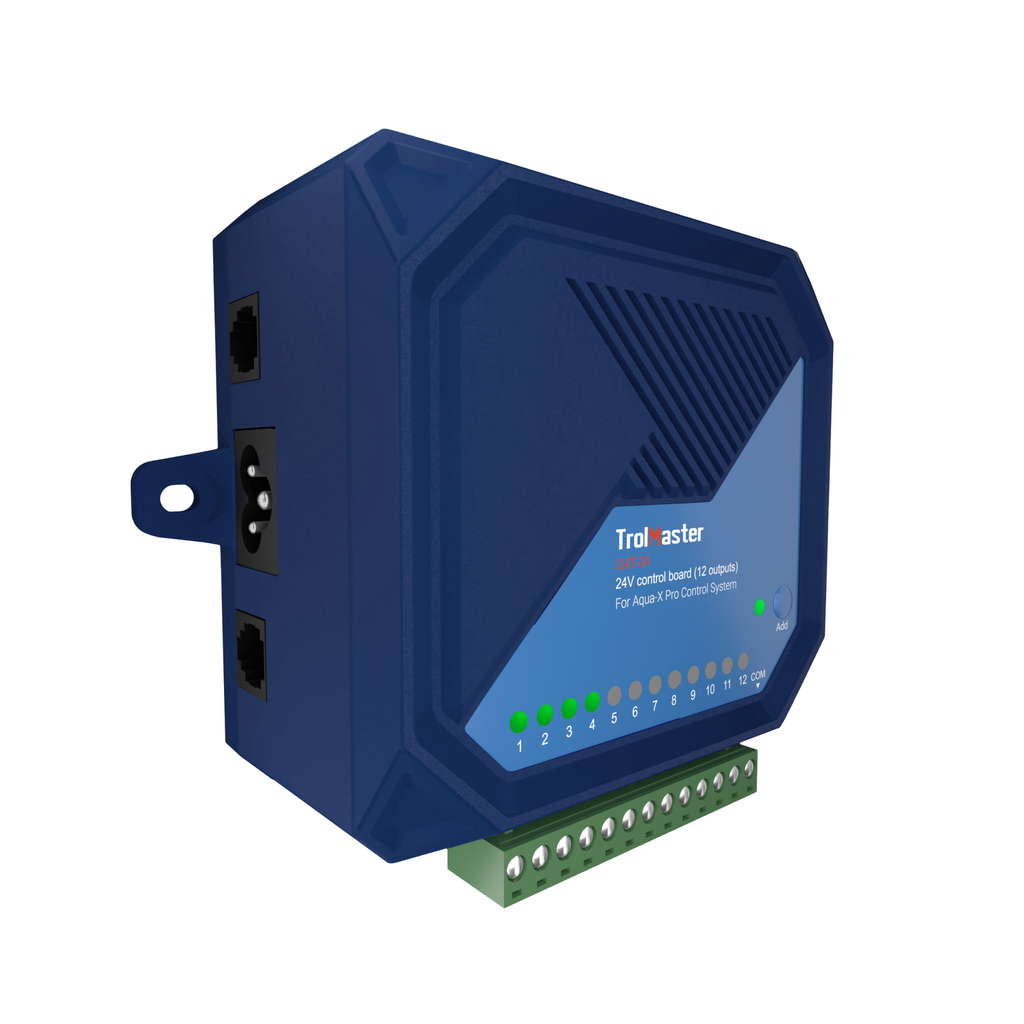

The OAT-24 module is specifically
designed for the Aqua-X Pro Irrigation Control System. It features 12
individual 24V outputs that can control up to 12 individual 24-volt
irrigation solenoids.
By
using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System
could manage up to 600 individually controlled 24V valves. Each of the
solenoid valves can be independently configured by the users with one of
the five control modes. Those 5 modes are feed by: Recycle, Schedule,
Demand, Volume, or Auto-fill.
With
the ability to control up to 600 solenoids using one of the 5 available
control modes, users could easily manage irrigation schedules for
multiple nutrients, rooms, and irrigation zones.
*NOTE: If more than one OAT-24 is connected to the NFS Controller, you CAN’ T share a common wire from one OAT-24 to another OAT-24.
Included:
1x OAT-24
1x 16ft RJ12 Cable
1x Power Cable
1x 13-Pin Phoenix Type Connector
Input Voltage: 100-240V, 50/60Hz
Max Input Current: 1.7A
Max Output Voltage/Current: 24VAC/0.5A per output
Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%
