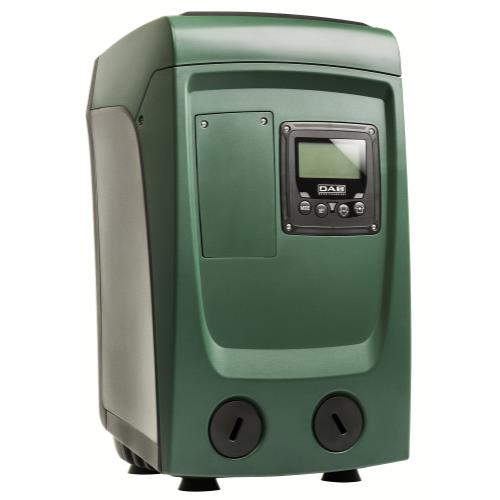

ESYBOX MINI 3
Thanks to the technological know-how developed during more than 40 years, DAB Pumps is proud to introduce to the market the ESYBOXmini 3, this is the most compact electronic pressurization system in the world.
Revolutionary, integrated E.SYBOX mini3 ;provides a new installation experience and maximum comfort during use. E.SYBOX mini3 benefits from the most advanced DAB technologies to ensure a consistent pressure based on actual needs, and therefore an optimization of energy consumption. E.SYBOX mini3 has a different appearance than any other booster set and is small and completely integrated. Once you install and use it, you realize that the real difference is in the comfort and performance.
ESYBOX mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption.
The new 3-rotor model ensures further noise reduction and energy consumption.
Managing the water pressure in your home has never been so simple and quiet. ESYBOX mini 3 is the DAB compact automatic booster system for the water supply of a single dwelling. ESYBOX mini3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system. Suitable for use with drinking water, in domestic systems, and in gardening applications. ESYBOXmini³ does not require any additional components for its installation.
TECHNICAL DATA

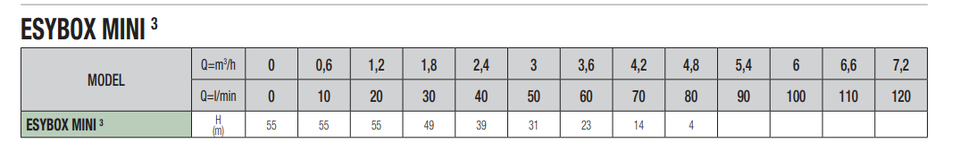

Operating range:
capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)
Liquid quality requirements:
clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral.
Liquid temperature range:
from 32°F to +95°F (0°C to +35°C) for domestic use
for other use: from 32°F to +104°F (0°C to +40°C)
Maximum suction depth: 26 ft (8 m)
Maximum ambient temperature: +122°F (+50°C)
Maximum pressure: 108 psi (7.5 Bar)
Maximum settable pressure: 79 psi (5.5 Bar)
Motor protection rating: IPX4
Insulation class: F
Installation: Horizontal or vertical fixed position
Approvals:
CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps
UL Standard 778- 5th Edition- Motor operated water pumps
NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects
NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content
Features

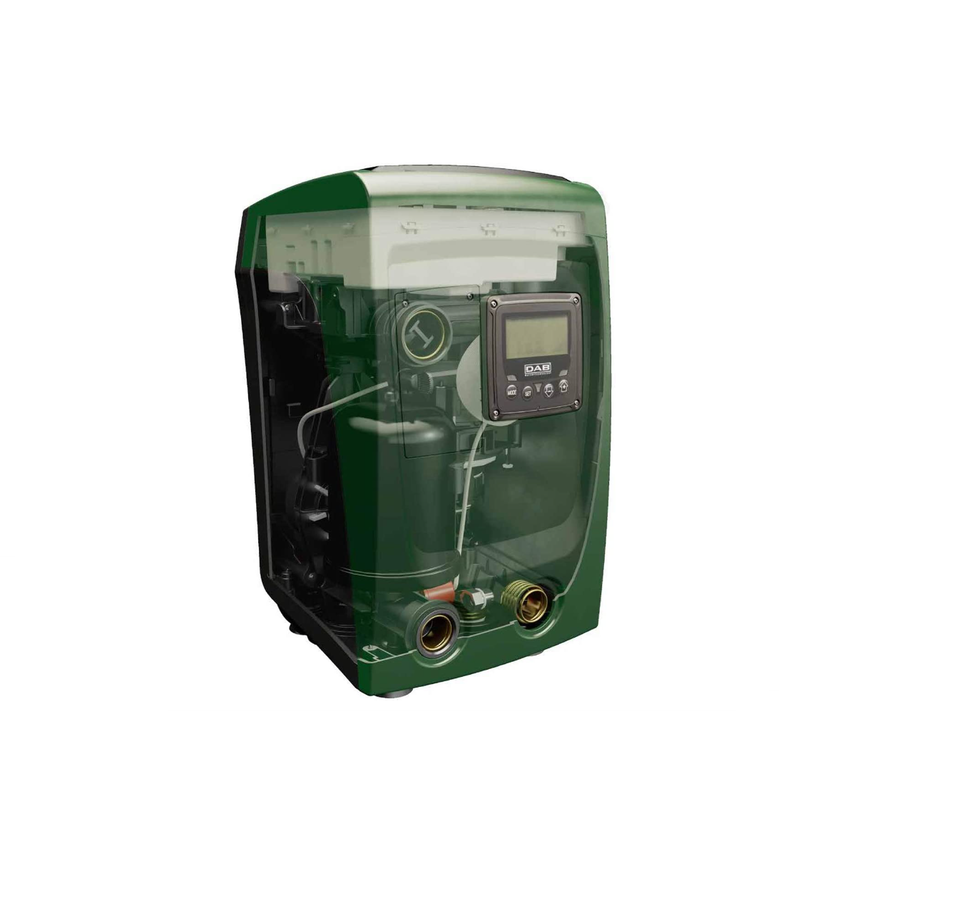

It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.
The double suction and delivery ports allow both vertical and horizontal installation.
Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.
The ESYWALL wall bracket allows wall installation, saving even more room.
ESYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes.
The water-cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact.
Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run and the antifreeze protections.
All the parameters and the operating status are displayed & set on the high-resolution LCD display.
Advantages
Thanks to the technological knowledge gained during the past 40 years, DAB PUMPS is proud to introduce the ESYBOX mini 3, the most compact and advanced booster pump system in the world.
Revolutionary and complete, ESYBOX mini 3 provides a new installation experience, whisper quiet running and maximum performance.
ESYBOX mini 3 is the ideal solution to solve any water pressurization issues in residential environments.
ESYBOX mini 3 takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimization of energy consumption.
Thanks to its versatility, ESYBOX mini 3 can be installed anywhere, even under the kitchen sink.
Benefits
GUARANTEES CONSISTENT WATERPRESSURE
ULTRA LOW NOISE
NO VIBRATIONS
EASY TO ADJUST
EQUIPPED WITH A LARGE DISPLAY
EXTREMELY COMPACT SIZES
QUICK TO INSTALL
INSTALLATION OPTIONS:
HORIZONTAL, VERTICAL
REDUCED ENERGY CONSUMPTION EASY MAINTENANCE
