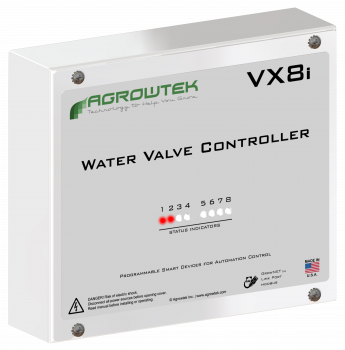

GrowControl™ VX series I/O modules feature high-current outputs for controlling either AC or DC irrigation valves.
Designed to operate either standard WX series electric diaphragm water valves or BV series DC motorized ball valves
with selectable AC or DC output mode. Operates valves independently, or up to four valves simultaneously.
A high-current 24V power supply is included for driving the valves from the VX controller. Connects instantly to
Agrowtek's Growcontrol™ GCX Cultivation Controls via GrowNET™ for advanced automated control functions. LED indicators
on the front panel provide status of each valve output. Rugged metal enclosure for wall mounting. Valve outputs rated
1A max/combined and include flyback protection and surge suppression on each output. Conduit knock-outs and screw
terminals for easy electrical installation. Flexible and reliable valve and DC load controller suitable for many
applications. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing
demand for highly reliable environmental control applications.
