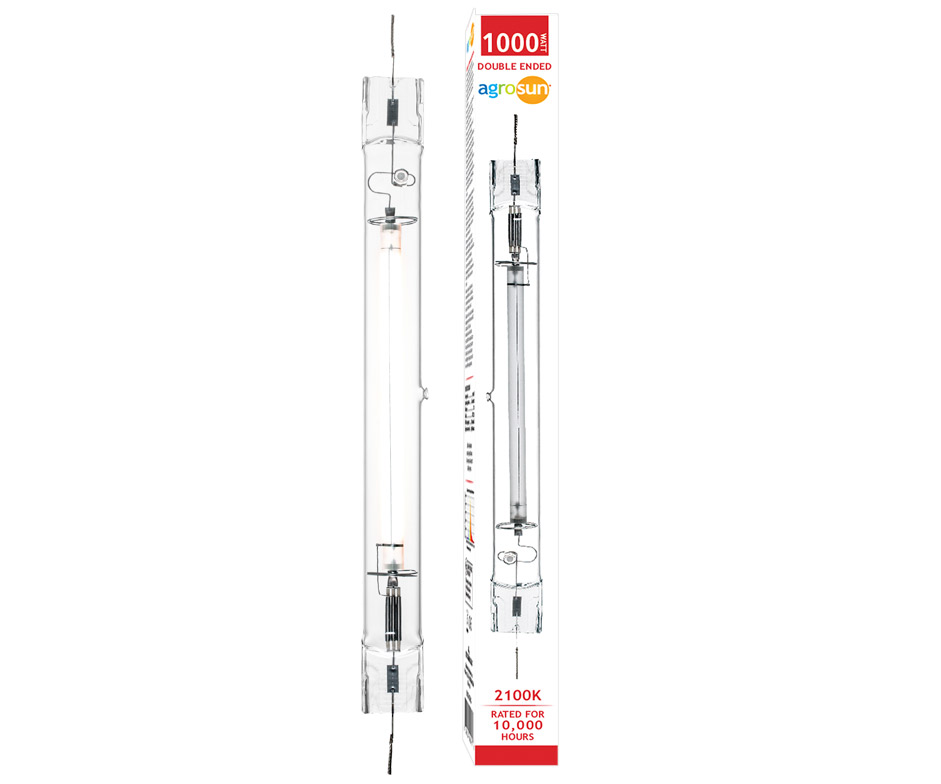

Agrosun Double-Ended High Pressure Sodium Lamp, 1000 Watt
Terms and Conditions
Shipping: 2-3 Business Days
Agrosun Double-Ended HPS lamps are ideal
for cultivation with high light intensity requirements. They provide
high proportions of both red and blue light, which guarantees efficient,
solid growth. Specifically designed for high frequency electronic
ballasts, their high output of PAR light (2100 μmol/s) promotes
photosynthesis. Made in the EU.
Lamps must be operated on ballasts and luminaires that meet all applicable ANSI specifications. External protection for the lamp is required to minimize bulb breakage due to water contact during lamp operation. For the total supply load, add auxiliary watts to lamp watts. NOTICE: If outer bulb is broken, care must be taken to avoid contact with the arc tube support to avoid electrical shock hazard. Power should be off and lamp cool during replacement.
Agrosun 1,000 Watt Double-Ended HPS Bulb, 2,100 K Features
Ideal for cultivation with a highest light demand
High proportions of red and blue light guarantee efficient photosynthesis
Highest output of PAR light (2.100 μmol/s) promotes photosynthesis
Lots of red light for more photosynthesis and good plant development
Blue light for a robust, compact plant structure
Applications: Horticulture, Controlled environment agriculture, Daylight supplementation in greenhouse structures, Livestock photoperiod management, Aquaculture, Algaculture.
CAUTION: This is an electric discharge lamp. Use only with proper circuits and auxiliary equipment. Failure to comply with this requirement may result in poor performance and possible personal injury or property damage for which the lamp manufacturer will not be responsible. Do not scratch glass bulb or subject lamp to undue pressure as either may cause the lamp to break. Wear safety glasses and gloves when installing or removing lamp.
WARNING: This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. This lamp complies with USA Federal Standard 21 CFR 1040.30 and Canada Standard SOR/80-381.
Preformance Data
Lamp Designation HPS 1000W/400V DE
Rated PAR Value 2100 μmol/s
Rated Average Life 10,000 hrs
Rated μmol/s per Watt 2.1 μmol/s/W
Rated Kelvin Temperature 2100K
Minimum Cycle Duration 180 min
Warm-up Time 7 min
Hot Re-strike Time 15 min
Re-Lamp Interval
Optimum Growth 12–16 months
Average Growth 16–20 months
Maintenance Growth 20–24 months
Operating Position Horizontal
Electrical Characteristics
Lamp Wattage 1000W
Open Fixture Rated OPEN
Lamp Current 4.8 A
Lamp Voltage 230V
Ignition Voltage 3.2 kV
Control Gear 1000W Electronic, 100–150 kHz
Physical Description
Lamp Diameter 1.18" max
Max Overall Length 12.71"
Lamp Center Location 6.35"
Lamp Finish Clear
Lamp Designation 5002473
Base Type Cable Leads
